INDUSTRIAL GRADE POE 10 PORT

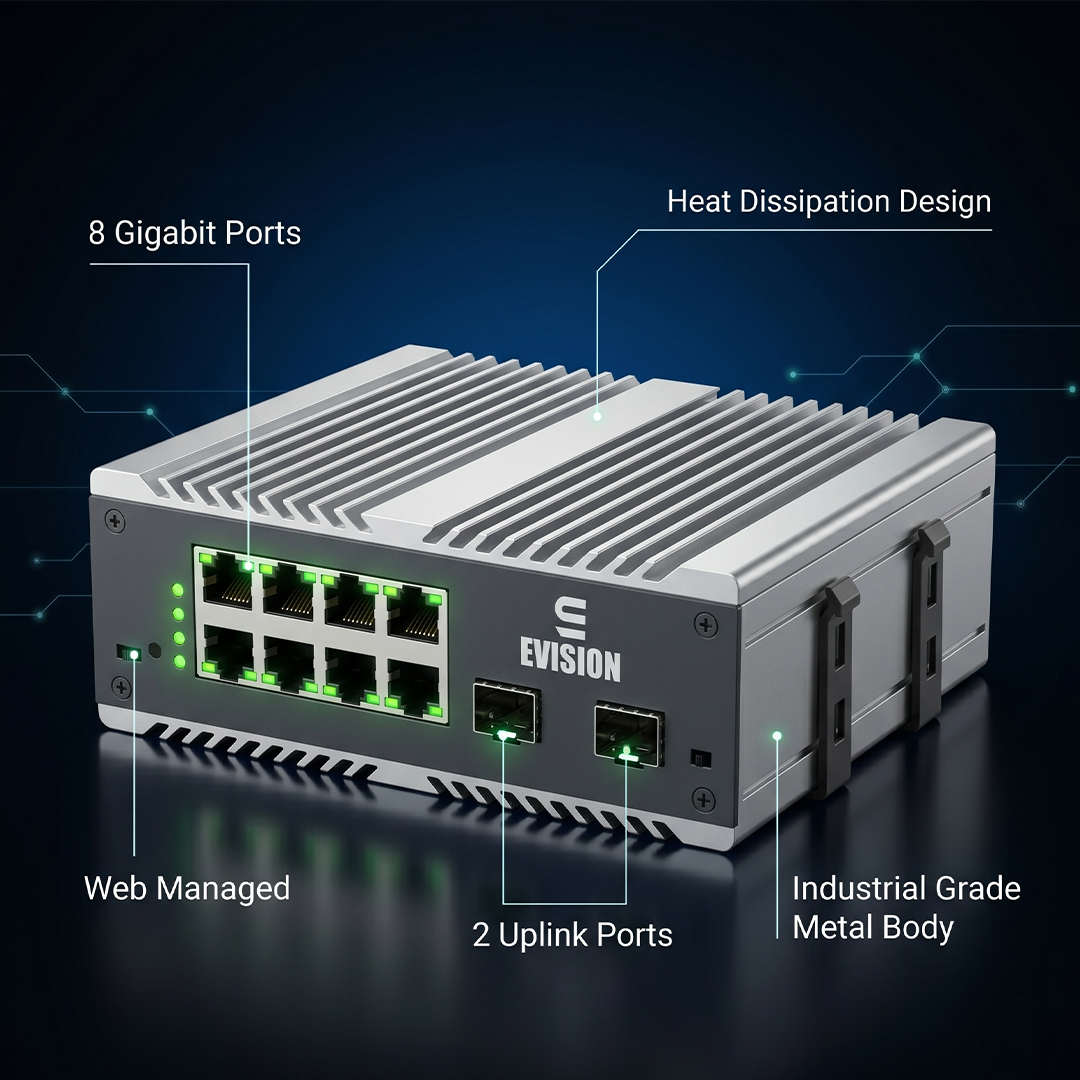

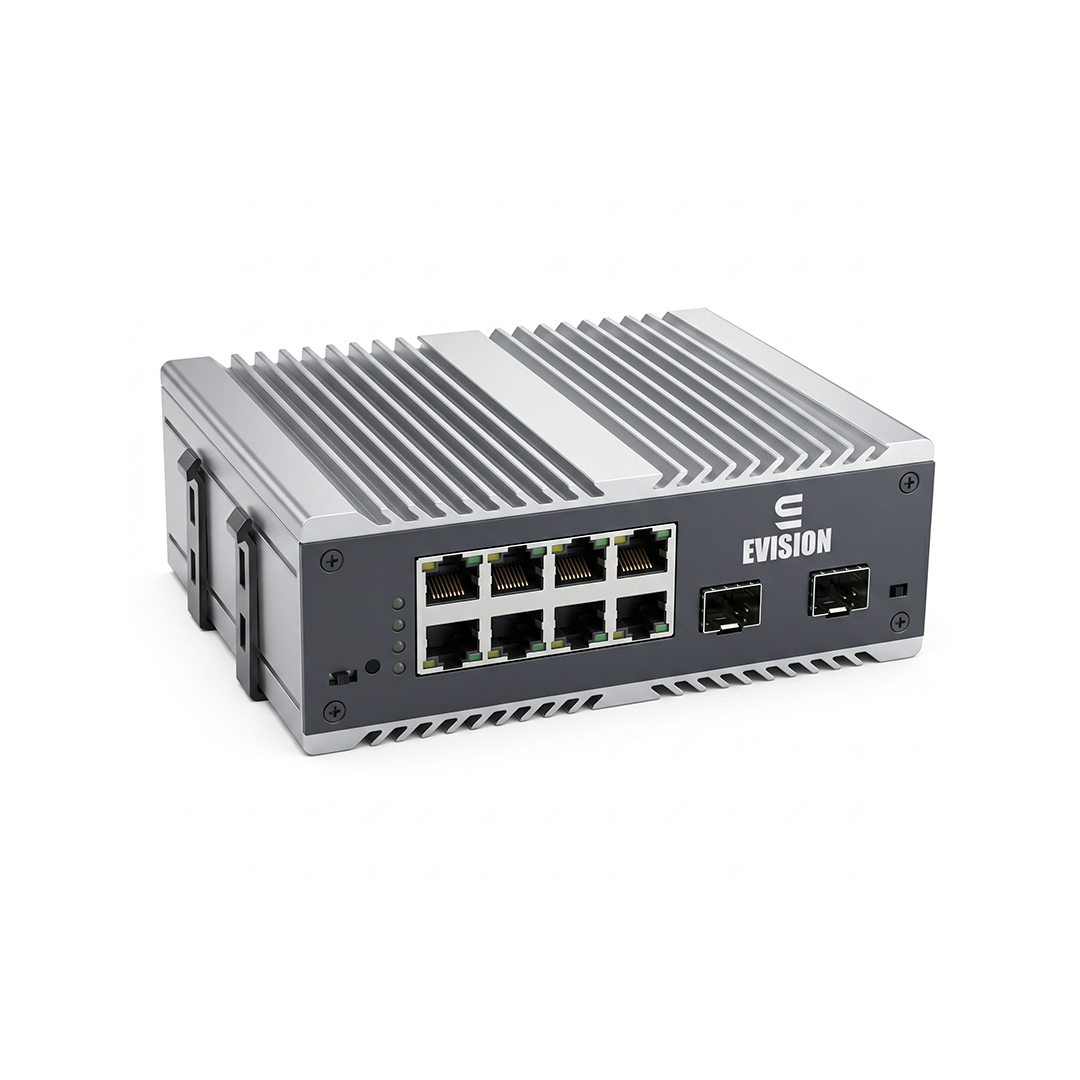

8+2 PORT 10/100M/1000M L2 WEB MANAGED INDUSTRIAL is a full Gigabit L2 WEB managed industrial Ethernet fiber switch independently developed by E VISION It has 8*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP ports. Each port can support wire-speed forwarding. The switch integrates the bypass optical switching module. When the power supply of the switch is interrupted, the optical fiber is automatically switched to the bypass-through state to avoid communication interruption due to switch failure and ensure the reliability of network transmission. The CFW-HY2008G-SFP has L2 WEB network management function, complete security protection mechanism, ACL/QoS policy and rich VLAN functions, easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP(<50ms) ,to improve link backup and network reliability to ensure uninterrupted communication of important applications.

Built with industrial-grade thermal architecture, optimized PoE power delivery, and commercial surveillance stability — engineered for uninterrupted 24×7 security operations.

10-Port Gigabit Managed Industrial Switch Specifications
Product Name	10-Port Gigabit Managed Industrial Switch
Ethernet Ports	8 × 10/100/1000Base-T Ports
SFP Ports	2 × 1000Base-X SFP Ports
Console Port	1 × Console Port
Network Protocol	IEEE 802.3af / IEEE 802.3at
Protection Class	IP40 Protection, Common Mode 6KV Lightning Protection
Housing	Industrial Aluminum Housing
Operating Temperature	-40°C to +75°C
Power Input	12–57V DC Dual Power Input with Multiple Protection
Management	Web Managed and SNMP Management
Protocol Support	RSTP Spanning Tree Protocol
